Custom forms

Last published : Aug 10, 2026
This chapter details how custom forms are defined and managed by TIBCO EBX®.
Related concepts:
Related information

Access

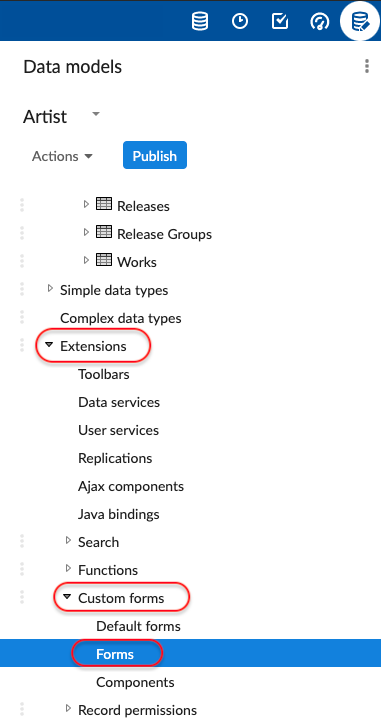

To access it, go to: Data Models > Extensions > Custom forms > Forms
Click on the button to create a form.

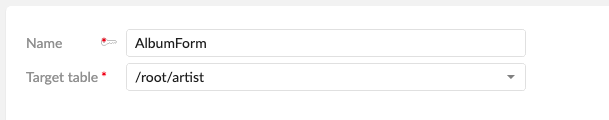

Name your new form and indicate the table on which it will be available.
Pressing the "Save" button will redirect you to the layout designer.

Forms and components

Both forms and components can be created in the 'Custom forms' data model extension.
  • A form describes the layout of a record. It can access contextual information such as the record or the input parameters. When creating a form, the user is asked to provide its target table. Once created, it can be declared as the default form of the table either in the 'Default form' table of the extension, or in the 'Extensions' tab of the target table. Forms that are not the default for their table will not be used.
  • A component is a reusable fragment that can be shared between forms and other components. Unlike forms, components don't have access to contextual information. If such information is needed, it must be provided explicitly by its caller.

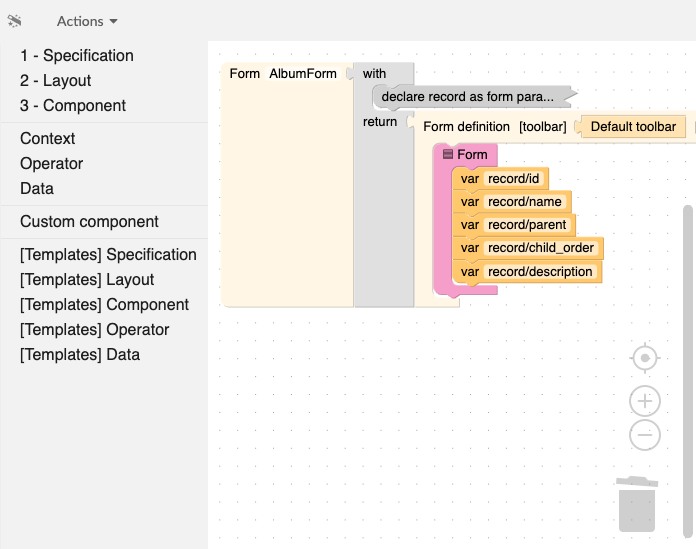

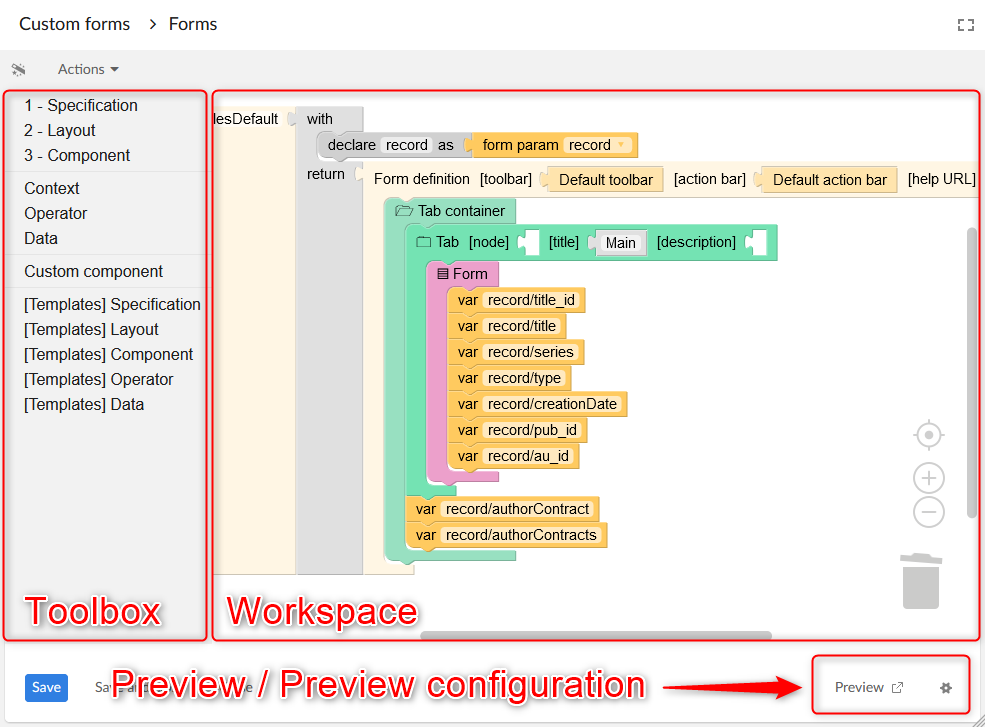

The editor

A form or component is just an imbrication of blocks. Blocks can represent a concrete graphical element or some piece of logic, allowing to have different layouts based on conditions like permissions, language, etc.
The workspace contains the description of the form, inside a predefined root block. Any block that is not connected to this root is grayed out, to mark it as inactive. To move a block, it must be dragged and dropped. Dragging a block also drags the blocks connected below it. If only one block has to be moved, hold the control key before clicking on it. Right-clicking on a block in the workspace also shows a list of options such as expand/collapse, comment, help, etc.
The toolbox on the left displays a list of categories. By clicking on a category, the blocks it contains are displayed. Some categories have a related 'Template' section. This section provides some combinations of the blocks of the section and can be considered as useful shortcuts or samples.
On the bottom right of the screen are the 'Preview' and 'Configure preview' buttons. These can be used to see what the form will look like.

Blocks

Here is the list of all the blocks that appear in the toolbox.

Arithmetic operator

Operations on two integers.

Array

A list of items.
See also:

Array item

Adapter to make expression blocks into arrays.
See also:

Boolean operator

Operations on two booleans.

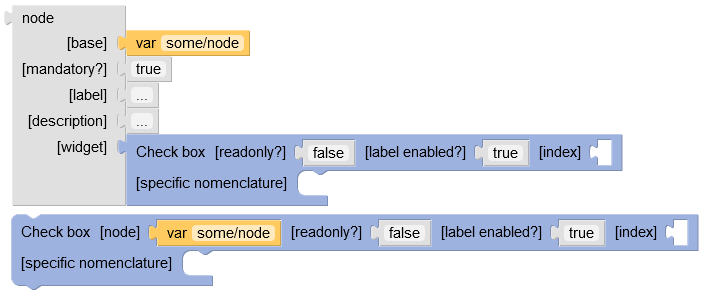

Check box

Displays the checkbox widget.

Parameters

Input Description
node The node for which to display the widget.
readonly? Indicates if the widget should be in readonly mode.
label enabled? If set, indicates if the item label is to be added next to the widget.
index The index for this enumeration item.
specific nomenclature If set, overrides the model-driven nomenclature.

Check box group

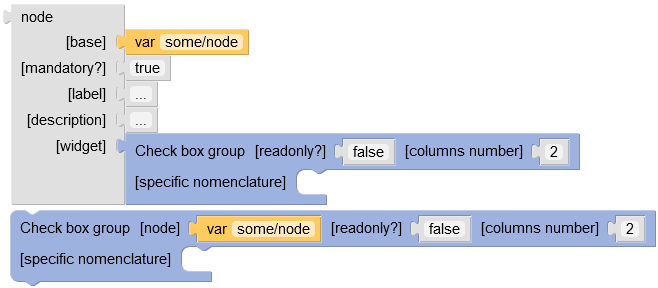

Displays the checkbox group widget.

Parameters

Input Description
node The node for which to display the widget.
readonly? Indicates if the widget should be in readonly mode.
columns number If set, defines the number of columns to use for the layout of the checkboxes.
specific nomenclature If set, overrides the model-driven nomenclature.

Children

Returns the list of the children of the given node.

Parameters

Input Description
node The complex node from which to extract children.

Choose

A block returning the content of one of its inner 'when'/'otherwise' blocks.

Parameters

Input Description
content A list of 'when' blocks and optionally a final 'otherwise' block.
See also:

Close button

Standard 'Close' button.

Parameters

Input Description
label If set, overrides the default label.
default? Indicates if this is the action to trigger when pressing 'Enter'. Only one button should be the default one.

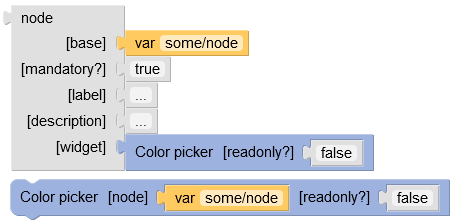

Color picker

Displays the color picker widget.

Parameters

Input Description
node The node for which to display the widget.
readonly? Indicates if the widget should be in readonly mode.

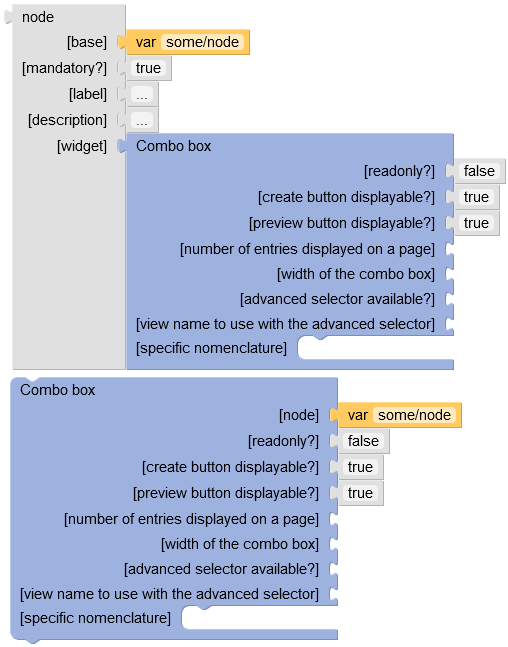

Combo box

Displays the combo box widget.

Parameters

Input Description
node The node for which to display the widget.
readonly? Indicates if the widget should be in readonly mode.
create button displayable? If set, defines if the create button should be displayed when the underlying node is a foreign key.
preview button displayable? If set, defines if the preview button should be displayed when the underlying node is a foreign key.
number of entries displayed on a page If set, defines the number of entries on each page of the drop-down list.
width of the combo box If set, defines the width of the combo box.
advanced selector available? If set, defines if the advanced selector should be displayed when the underlying node is a foreign key.
view name to use with the advanced selector If set, defines the name of the published view that will be used in the combo-box selection of the associated foreign key field.
specific nomenclature If set, overrides the model-driven nomenclature.

Comparator

Compares two integers.

Comparison

Compares strings, numbers or booleans.

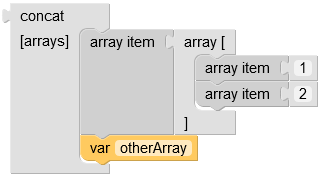

Concatenate arrays

Returns the concatenation of the given arrays.

Parameters

Input Description
arrays A list of arrays.

Constant

A constant value. Depending on the context, this value may be interpreted as text, boolean or number.

Parameters

Input Description
value Text, boolean or number.

Content title

Display the workspace content title.

Parameters

Input Description
label The text to display.
horizontal alignment The horizontal alignment of the element. If set, accepted values are: 'start', 'end', 'center'.

Creating record?

Returns a boolean indicating if the form is displayed in the context of a record creation or duplication.

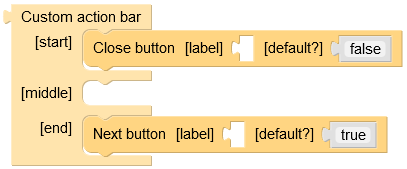

Custom action bar

A custom action bar.

Parameters

Input Description
start A list of 'Button's to display on the left of the action bar.
middle A list of 'Button's to display on the center of the action bar.
end A list of 'Button's to display on the right of the action bar.

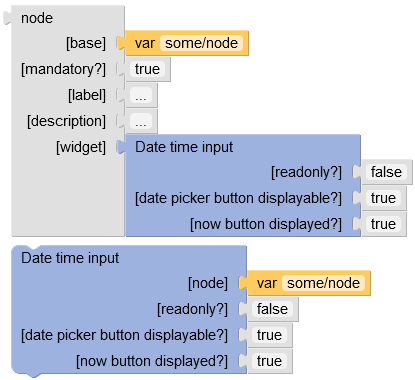

Date time input

Displays the date/time input.

Parameters

Input Description
node The node for which to display the widget.
readonly? Indicates if the widget should be in readonly mode.
date picker button displayable? Indicates if the button opening the date picker is displayed (read/write mode only).
now button displayed? Indicates if the button setting the date to the current time is displayed (read/write mode only).

Declare

The declaration of a variable, in a 'with' block.

Parameters

Input Description
name The name of the variable. Must be unique for a given 'with' block.
content The value of the variable, which will be returned by 'var' blocks referencing this.
See also:

Default action bar

The default action bar.

Default toolbar

The model-driven toolbar.

Duplicating record?

Returns a boolean indicating if the form is displayed in the context of a record duplication.

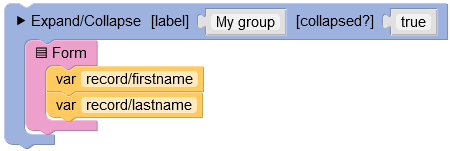

Expand/Collapse

Displays its content inside an expand/collapse block.

Parameters

Input Description
label Label displayed next to the arrow.
collapsed? Indicates if the group is initially collapsed or not.
content A list of components to be collapsible.

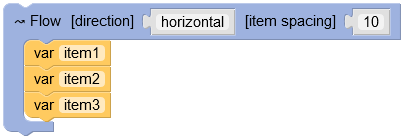

Flow

Displays its content in a fluid manner. If the elements don't fit in one row or column, they will wrap to start a new one.

Parameters

Input Description
direction 'horizontal' or 'vertical', indicates in which direction to queue its content.
item spacing The space between elements, in pixels.
content A list of elements to display either horizontally or vertically.

For each

Returns an array that is made of the result of the 'body' function, applied on each item of the 'of' array.

Parameters

Input Description
item The name of the variable containing the current item.
array The array containing the items to transform.
return What to return for the current item.

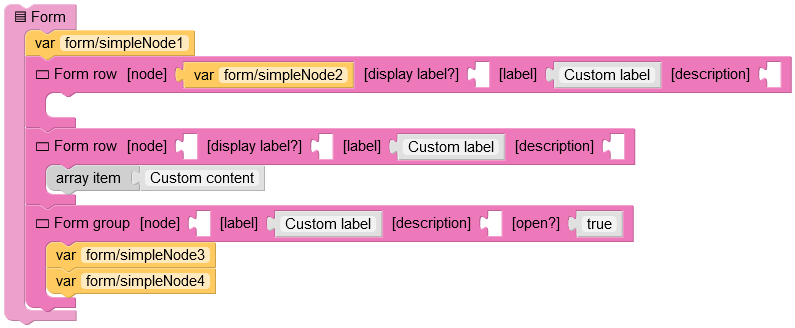

Form

Standard table-like layout with labels on the left side and values on the right side.

Parameters

Input Description
content A list of 'Form row', 'Form group' or nodes. Nodes will result in model driven display, 'Form row' and 'Form group' allow to display custom content.
See also:

Form definition

Actual definition of a form.

Parameters

Input Description
toolbar Definition of the toolbar displayed on top of the form.
action bar Definition of the action bar displayed below the form.
help URL URL of the help page.
content The content of the layout.

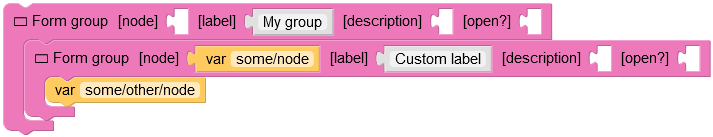

Form group

Inside a 'Form', displays a collapsible group of items.

Parameters

Input Description
node If set, the group label, description and content will be model driven.
label The label of the group. May override the model driven label if a node and a label are set.
description The description of the group. May override the model driven description if a node and a description are set.
open? Indicates if the group is initially open.
content A list of 'Form row', 'Form group' or nodes. Nodes will result in model driven display, 'Form row' and 'Form group' allow to display custom content.
See also:

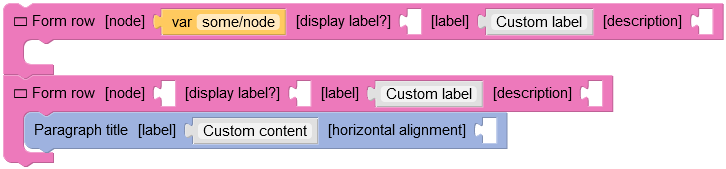

Form row

Inside a 'Form' or a 'Form group', displays a row, that is basically a label and a value.

Parameters

Input Description
node If set, the label, description and content will be model driven.
display label? Indicates if the label should be displayed. If set to false in a 'Form' the content will span over both the label and content area.
label The label of the row. May override the model driven label if a node and a label are set.
description The description of the row. May override the model driven label if a node and a label are set.
content The content to be displayed next to the label.
See also:

Form parameter

The 'record' is the node representing the displayed record. 'current page' is a number (1 by default) representing the displayed page. This value can be changed by the 'Previous' and 'Next' buttons.

From...get

Extract a value from an object or a node.
<from "node" get "path/to/value"> is equivalent to <var "node/path/to/value">

Parameters

Input Description
from Base object or node, from which to extract data.
get Path of the data to extract, inside the object in 'from'.

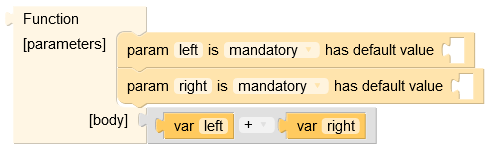

Function

The definition of an anonymous function. A function makes use of its parameters in its body to return a result.

Parameters

Input Description
parameters List of 'param' blocks, defining the parameters accepted by this function.
body Body describing the result of the function, using its parameters.
See also:

Function call

Calls a function by setting actual values to its parameters.

Parameters

Input Description
function The function to call.
args The arguments to pass to the function.
See also:

Function call argument

Actual value to pass to the parameter of the called function.

Parameters

Input Description
name The name of the parameter.
value The actual value to pass the the parameter.
See also:

Function parameter

This is the declaration of a parameter of a function.

Parameters

Input Description
name The name of the parameter.
mandatory? Indicates if this parameter must be provided by the caller.
default value If set, this is the default value taken by this parameter if the caller does not provide one.
See also:

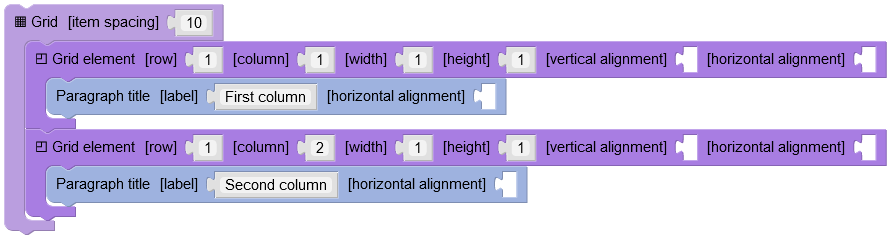

Grid

A layout allowing to place components in a grid with coordinates.

Parameters

Input Description
item spacing Space between elements, in pixels.
content A list of 'Grid element's, which specify where to display their content.
See also:

Grid element

Inside a 'Grid', specifies the location of its content.

Parameters

Input Description
row The row where the element starts. Minimum value is 1.
column The column where the element starts. Minimum value is 1.
width The width of the element, in grid cells. Minimum value is 1.
height The height of the element, in grid cells. Minimum value is 1.
vertical alignment The vertical alignment of the element. If set, accepted values are: 'start', 'end', 'center'.
horizontal alignment The horizontal alignment of the element. If set, accepted values are: 'start', 'end', 'center'.
content The content inside the cell.
See also:

If

A block returning either the content of 'then', or the content 'else', based on the result of the test.

Parameters

Input Description
test A test determining which value to return. This must be a boolean value.
then The value returned if the test is true.
else The value returned if the test is false.

Input parameter

Returns the raw value of an input parameter.

Parameters

Input Description
name The parameter name.

In role?

Returns a boolean indicating if the current user has the requested role.

Label

Displays the label of the given node.

Parameters

Input Description
node The node for which to display the label.

Localized

Block which result depends on the user locale.

Parameters

Input Description
[locale] Each parameter relates to a locale. The result of the block will be the one corresponding to the locale of the current user.

Message

Formats the given text by replacing java-like {0}, {1}, etc. placeholders by the argument at the given index.

Parameters

Input Description
pattern Text with placeholders ({0}, {1}, etc.) which will be replaced by the given arguments.
arguments The list of values which will replace the placeholders in the pattern.

Next button

A button which will increment the 'current page' value by one.

Parameters

Input Description
label If set, overrides the default label.
default? Indicates if this is the action to trigger when pressing 'Enter'. Only one button should be the default one.

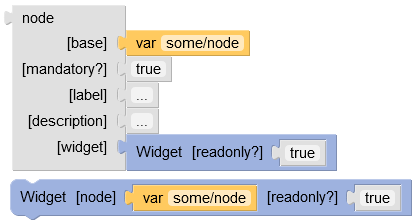

Node

Overrides the definition of an existing node.

Parameters

Input Description
base The node to override.
mandatory? If set, overrides the mandatory indicator of the base node.
label If set, overrides the label of the node.
description If set, overrides the label of the node.
widget If set, overrides the default widget of the node.

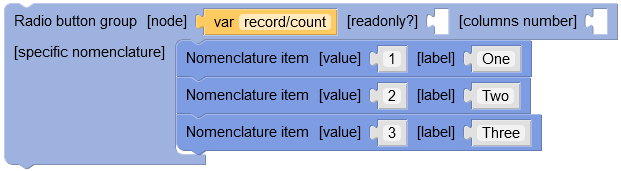

Nomenclature item

A nomenclature item is a (key, label) pair.

Parameters

Input Description
value The value of the item.
label The label of the item.

Not

Returns the inverse of the given boolean.

Object

An object composed of a list of (key, value) pairs.

Parameters

Input Description
content A list of 'property' blocks.
See also:

Otherwise

Final choice in a 'choose' block. Will be returned if no 'when' case matched.

Parameters

Input Description
content The value to return if no 'when' case matched.
See also:

Paragraph title

Display a paragraph title.

Parameters

Input Description
label The text to display.
horizontal alignment The horizontal alignment of the element. If set, accepted values are: 'start', 'end', 'center'.

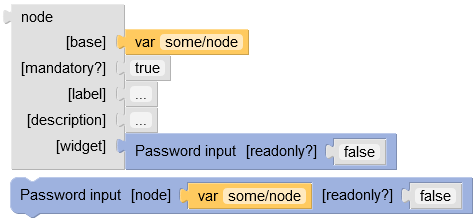

Password

Displays the input password widget.

Parameters

Input Description
node The node for which to display the widget.
readonly? Indicates if the widget should be in readonly mode.

Previous button

A button which will decrement the 'current page' value by one.

Parameters

Input Description
label If set, overrides the default label.
default? Indicates if this is the action to trigger when pressing 'Enter'. Only one button should be the default one.

Property

A property of an object.

Parameters

Input Description
name Name of the property. Must be unique for a given object.
value Value of the property.

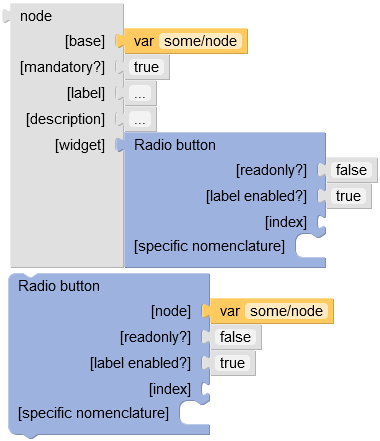

Radio button

Displays a radio button widget.

Parameters

Input Description
node The node for which to display the widget.
readonly? Indicates if the widget should be in readonly mode.
label enabled? If set, indicates if the item label is to be added next to the widget.
index The index for this enumeration item.
specific nomenclature If set, overrides the model-driven nomenclature.

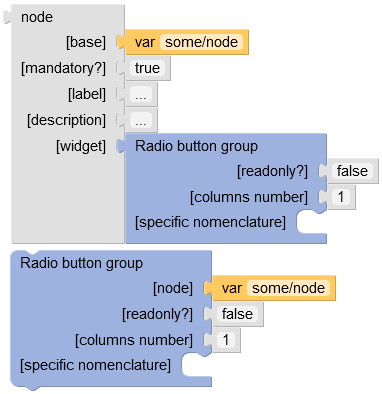

Radio button group

Displays the radio button group widget.

Parameters

Input Description
node The node for which to display the widget.
readonly? Indicates if the widget should be in readonly mode.
columns number If set, defines the number of columns to use for the layout of the radio buttons.
specific nomenclature If set, overrides the model-driven nomenclature.

Revert button

Standard 'Revert' button.

Parameters

Input Description
label If set, overrides the default label.
default? Indicates if this is the action to trigger when pressing 'Enter'. Only one button should be the default one.

Save button

Standard 'Save' button.

Parameters

Input Description
label If set, overrides the default label.
default? Indicates if this is the action to trigger when pressing 'Enter'. Only one button should be the default one.

Save and close button

Standard 'Save and close' button.

Parameters

Input Description
label If set, overrides the default label.
default? Indicates if this is the action to trigger when pressing 'Enter'. Only one button should be the default one.

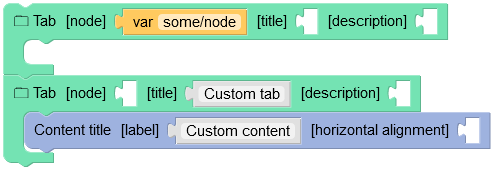

Tab

A tab, inside a 'Tab container'.

Parameters

Input Description
node If present, the tab title, description and content will be model driven.
title The title of the tab. May override the model driven title if a node and a title are set.
description The description of the tab. May override the model driven description if a node and a description are set.
content The content of the tab. May override the model driven content if a node and a content are set.
See also:

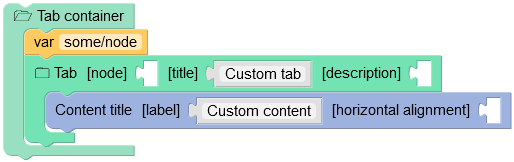

Tab container

A container of tabs, which displays a list of tab names and one active tab.

Parameters

Input Description
content A list of 'Tab's.
See also:

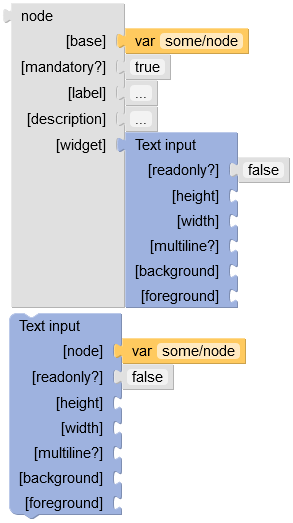

Text input

Displays the text input widget.

Parameters

Input Description
node The node for which to display the widget.
readonly? Indicates if the widget should be in readonly mode.
height If set, defines the height of the widget, in pixels.
width If set, defines the width of the widget, in pixels.
multiline? If set, defines if the widget spans over multiple lines.
background If set, defines the background color, in hexadecimal format.
foreground If set, defines the foreground color, in hexadecimal format.

Toolbar named

The toolbar having the specified name.

Parameters

Input Description
name The name of the toolbar to display.

Variable

A reference to a variable declared by a 'with...declare' block. A path is also accepted if the variable is an object or a node.

Parameters

Input Description
expression A reference to a variable declared by a 'with...declare' block. A path is also accepted if the variable is an object or a node.

When

A choice in a 'choose' block. If the test is true, the 'then' content will be returned, otherwise the next block will be tested.

Parameters

Input Description
when A boolean test indicating if this case should be resolved.
then If the test is true, this value will be returned.
See also:

Widget

Displays the default widget.

Parameters

Input Description
node The node for which to display the widget.
readonly? Indicates if the widget should be in readonly mode.

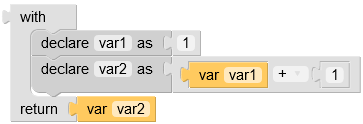

With

Declares variables that can be used in its 'return' statement.

Parameters

Input Description
variables A list of 'declare' blocks.
return The value to return. The variables declared in the 'variables' statement can be used here, with 'var' blocks.
See also:
